Juniper Mist Teleworker Wired Port Tunneling and Dot1x

In this post, I’m going to get straight to the point and answer three questions I had about the Juniper teleworker solution that I eventually solved through trial and error. This is focused on configuring the additional wired ports available—at the time of writing—on AP12, AP41, AP43, AP45, and AP47.

The three questions:

• How are tunnels established between the additional wired ports on APs that have eth1+ (i.e., eth1-4)?
• What are the differences between creating a device profile in the Mist UI and creating one via the API?
• How can an API call be made to create or modify a device profile that also configures RADIUS/802.1x on AP wired Ethernet ports?

(Mist Teleworker Solution Amended with Wired Teleworker Connection (Click for larger version))

How are tunnels established between the additional wired ports on APs that have eth1+ (i.e., eth1-4)?

The official documentation on wired port configuration is not entirely clear on this question. At best, it says:

The problem with this is: I’m an idiot, so I need something a bit more clear and detailed that explains the why of a configuration.

Here’s what I learned about device profiles and/or the configuration of these AP Ethernet ports in my own words:

• On port eth0, this is your main uplink and it is a trunk (see item ‘A’ on the diagram). The default VLAN is ‘1’ on this port, and this should pretty much be left alone on teleworker APs, so keep this port configured with VLAN 1.
• If you configure other VLANs on the eth0 trunk (item ‘A’), ensure the VLANs on the trunk do not match the VLAN IDs on the other wired Ethernet ports (eth1-4, item ‘B’) because the AP will then trunk those VLANs to port eth0.
• (Important) If the VLAN IDs on ports eth1-4 (item ‘B’) match the VLANs on a Mist tunnel configured on a Mist Edge (item ‘E’), the Mist AP will establish a tunnel (item ‘C’) for those ports.
• (Important) The tunnel used will be the same tunnel configured for wireless SSID tunneling (aka, ‘wxtunnel’ in the API, item ‘D’). If you do not configure a tunnel for a wireless SSID (‘Custom Forwarding’ in the WLAN configuration), I can only infer—but have not validated—that you will need to use API calls because there are no configuration options in the Mist UI for tunnels to select. (I say this because dot1x configuration is not in the UI, and is also only configurable in the API, but more on that later.)

See the following tunnel configuration from a Mist Edge configuration.

If VLANs 800 and 900 are on the tunnel (in my hypothetical) in the Mist Edge configuration, and if the VLANs are configured on the ports (see below), then tunnels will be established.

In summary, items ‘B’ on the main teleworker diagram need to exist on items ‘E’ in the Mist Edge tunnel configuration for the wired ports to tunnel back to the Mist Edge.

What are the differences between creating a device profile in the Mist UI and creating one via the API?

Mist UI

For the APs, the Mist UI has device profile options that probably meet 90%+ of the use cases needed.

On the API side of things, the Mist UI configures the following:

{
    "poe_passthrough": false,
    "disable_eth1": false,
    "disable_eth2": false,
    "disable_eth3": true,
    "disable_module": true,
    "radio_config": {},
    "mesh": {
        "enabled": false,
        "role": "base",
        "group": null
    },
    "ip_config": {
        "type": "dhcp",
        "mtu": 0
    },
    "ble_config": {
        "power_mode": "default",
        "beacon_enabled": true
    },
    "switch_config": {
        "enabled": true,
        "eth0": {
            "vlan_ids": [
                1
            ],
            "port_vlan_id": ""
        },
        "eth1": {
            "vlan_ids": [
                800
            ],
            "port_vlan_id": ""
        },
        "eth2": {
            "vlan_ids": [
                900
            ],
            "port_vlan_id": ""
        },
        "eth3": {
            "vlan_ids": [],
            "port_vlan_id": ""
        },
        "module": {
            "vlan_ids": [],
            "port_vlan_id": ""
        },
        "wds": {
            "vlan_ids": [],
            "port_vlan_id": ""
        }
    },
    "esl_config": {
        "enabled": false,
        "type": "imagotag",
        "host": "",
        "channel": null,
        "vlan_id": 1
    },
    "aeroscout": {
        "enabled": false,
        "locate_connected": false,
        "host": "",
        "port": 1144
    },
    "uplink_port_config": {
        "dot1x": false
    },
    "centrak": {
        "enabled": false
    },
    "vars": {},
    "id": "00000000-0000-0000-0000-000000000000",
    "name": "dummy-profile",
    "org_id": "00000000-0000-0000-0000-000000000000",
    "created_time": 1748479960,
    "modified_time": 1748479960,
    "type": "ap"
}

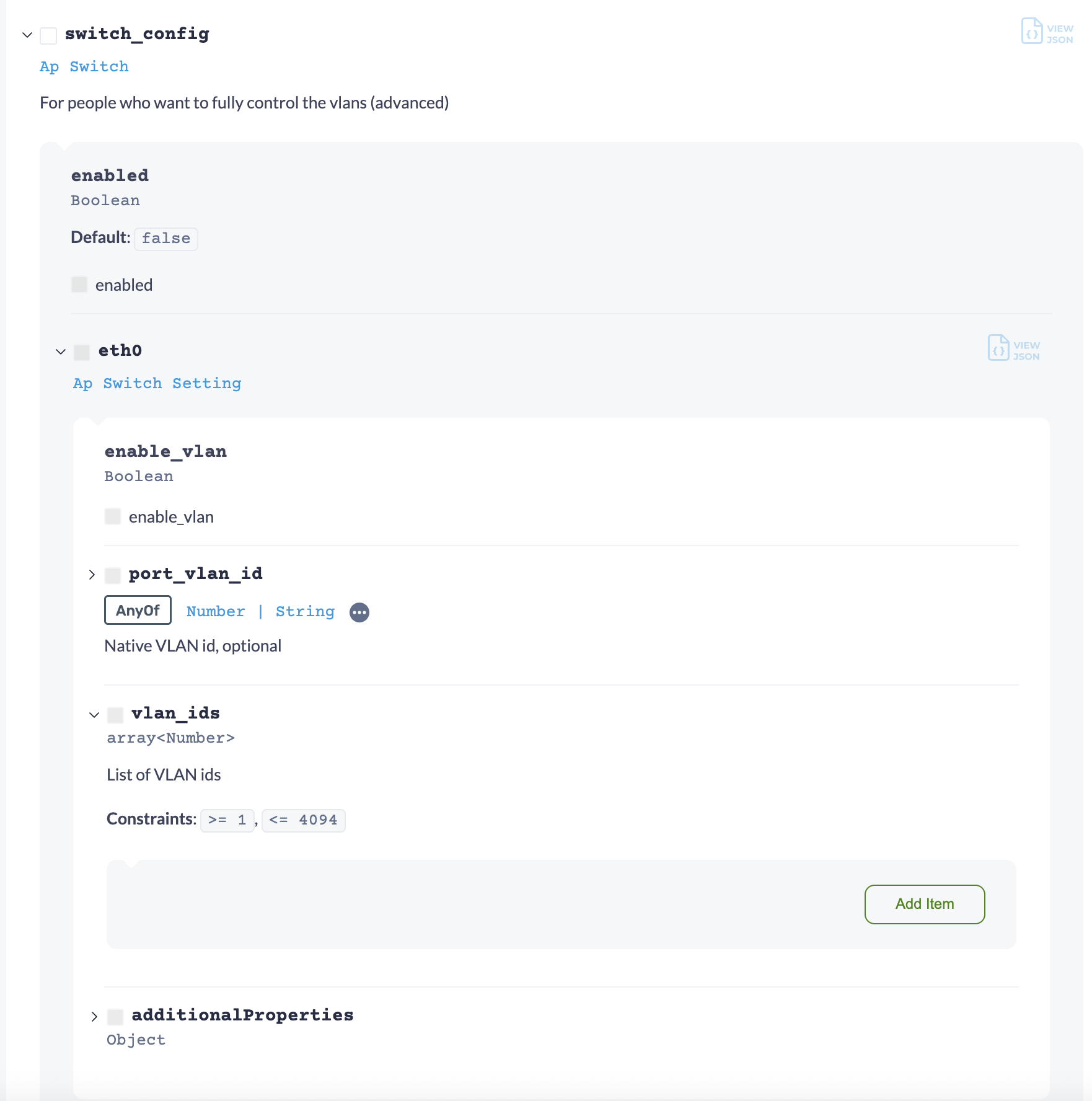

The Mist UI configures default device profile options using the ‘switch_config’ property in the API.

If you look at the configuration, though, there are actually very few options:

If you use the API, though, there are far more options. See below.

Mist API

The Mist API has a property option not available in the UI: port_config.

Ap Port Config - Mist API Reference

This property contains options for dot1x, MAC auth, Mist NAC, and more, providing much more versatility than the switch_config property. In fact, in the older Mist API documentation* , it makes the following note:

// eth0 is not allowed here
// if specified, this takes precedence over switch_config (deprecated)

Which, as it turns out, means port_config takes precedence over switch_config. However, port_config options are not available in the Mist UI, only in the API.

How can an API call be made to create or modify a device profile that also configures RADIUS/802.1x on AP wired Ethernet ports?

I’m doing this the easy way: Postman.

Mist Cloud APIs 2505.1.1 Documentation

I’ve made the following API call:

createOrgDeviceProfiles or updateOrgDeviceProfiles

Using port_config, we have options to configure MAC-based authentication, dot1x-based authentication, and other options. For the problem I was trying to solve, I used the following body statement to configure dot1x ports with Mist Access Assurance.

{
  "led": {
    "brightness": 255,
    "enabled": true
  },
  "name": "Teleworker-AP",
  "type": "ap",
  "port_config": {
    "eth1": {
      "disabled": false,
      "enable_mac_auth": true,
      "mac_auth_protocol": "eap-md5",
      "forwarding": "mxtunnel",
      "mxtunnel_id":"00000000-0000-0000-0000-000000000000",
      "mac_auth_preferred": false,
      "mist_nac": {
        "enabled": true
      },
      "port_auth": "dot1x",
      "vlan_id": 900,
      "vlan_ids": [
        900
      ]
    }
  }
}

In this configuration:

• I’m configuring MAC-based authentication (enable_mac_auth)
• Configuring the tunnel to use, which is the same tunnel being used by the WLAN profile (mxtunnel_id)
  • Note: You cannot use different tunnels on wired and wireless ports; i.e., you cannot have wxtunnels and mxtunnelsj with different tunnel IDs. The AP establishes only one tunnel at a time.
• Using Access Assurance (mist_nac, and be sure to also enable it with "enabled": true)
• Doing dot1x port authentication on the wired ports (port_auth)

That’s the gist of it.

Hope that helps.
